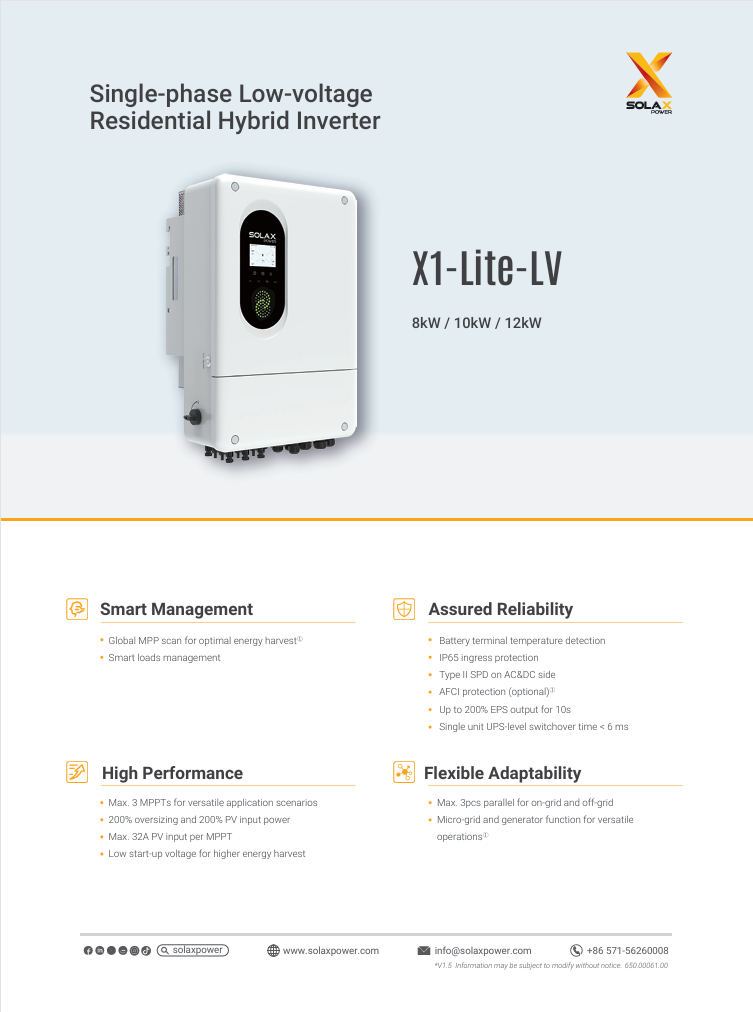

SolaX X1-Lite 8-12kW SP Hybrid Inv

Single-Phase Low-Voltage Hybrid Inverter – Designed for residential solar+storage, compatible with 48V low-voltage batteries for safe operation.
Automatic On/Off-Grid Switching – Millisecond switchover to battery backup during grid failure, keeping critical home loads powered.
Diesel Generator Input – Can integrate with a diesel generator, prioritizing solar and battery for over 70% fuel savings.
6 Programmable Time-of-Use Periods – Smart charge/discharge scheduling based on peak/off-peak tariffs to maximize electricity bill savings.
High Protection Rating – IP65 rated, dust-tight and waterproof for both indoor and outdoor installation.
Wide Power Range – Available in 8kW, 10kW and 12kW models to suit different household consumption levels.
High Efficiency – Max efficiency 97.6%, MPPT efficiency 99.9% – extracting more power from your solar panels.

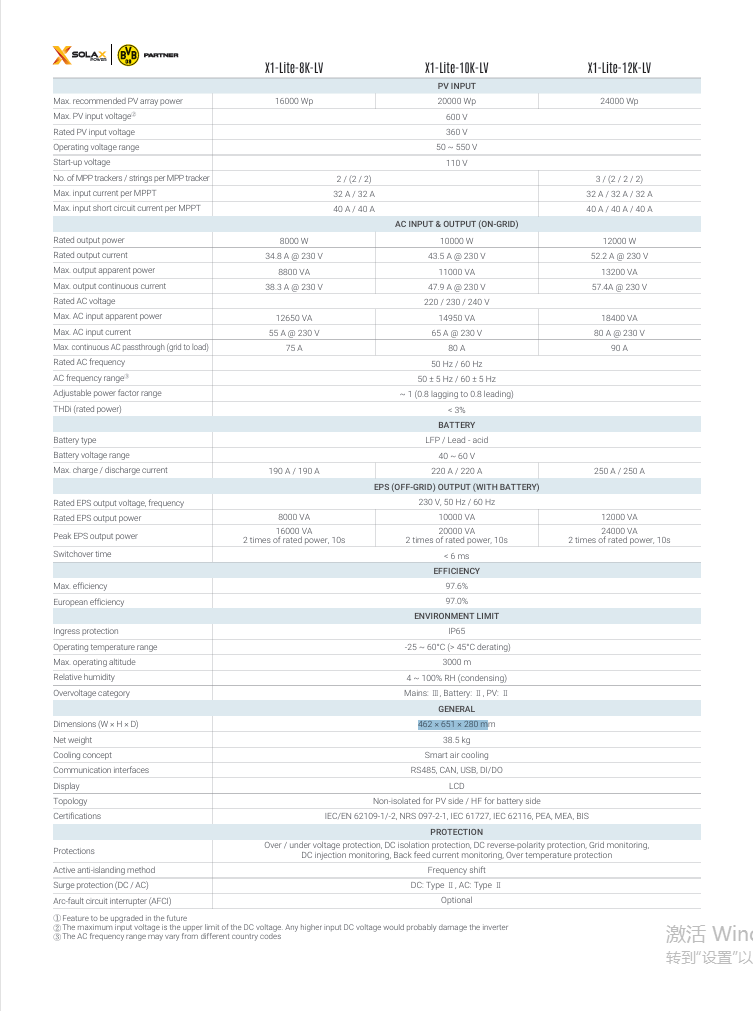

Product Detail

Output Type	Single	Type	DC/AC Inverters
Brand Name	SOLAX	Inverter Efficiency	97.6%
Place of Origin	Zhejiang, China	Model Number	SolaX X1-Lite-8K/10k/12k-L
Input Voltage	640V	Output Voltage	125V
Output Current	32 A/32 A	Output Frequency	50-55 HZ;60-65HZ
Size	462 * 651 280 mmm(18.1925.63*11.02in)	Weight	38.5 kg(84.88lb)
Max. recommended PV array power	16-24kWp	MPPT voltage range	50 ~ 550 V
No. of MPP. trackers / strings per MPPT	2/(2/2)	Max. input current per MPPT	32 A/32 A
Rated output power	8000 W	Peak EPS output power	16000 VA 2 times of rated power, 10s
Switchover time	<6 ms	Selling Units	Single item
