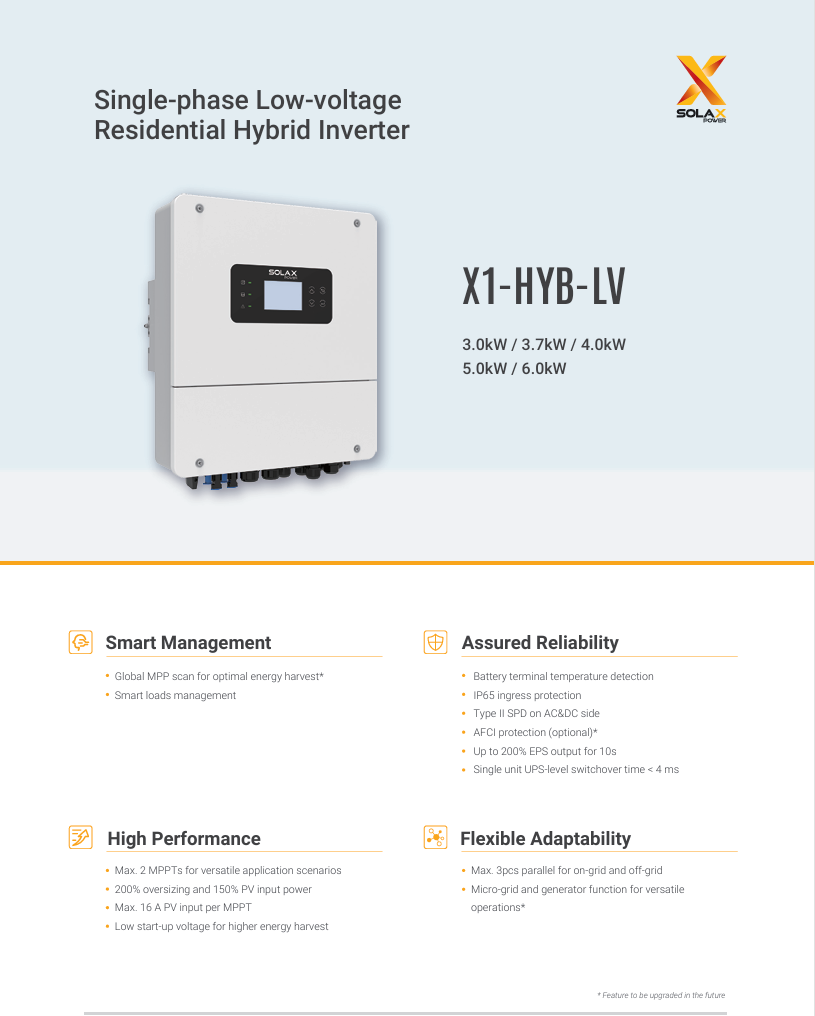

SolaX X1-HYB 3-6kW-L LV Hybrid Inverter

Single‑Phase Low‑Voltage Hybrid Inverter – Designed for residential solar+storage, compatible with 48V low‑voltage batteries for safe and reliable operation.
Automatic On/Off‑Grid Switching – Millisecond switchover to battery backup during grid failure, keeping essential home loads (lights, fridge, communication) powered.
6 Programmable Time‑of‑Use Periods – Smart charge/discharge scheduling based on peak/off‑peak tariffs to maximize electricity bill savings.
Diesel Generator Integration – Can be paralleled with a diesel generator, prioritizing solar and battery to achieve >70% fuel savings.
High Efficiency – Max efficiency 97.6%, MPPT efficiency 99.9% – extracting more power from PV panels.
Wide Power Range – Available in 3.0kW, 3.7kW, 4.0kW, 5.0kW and 6.0kW models to suit different household consumption levels.
IP65 Rated – Dust‑tight and waterproof, suitable for both indoor and outdoor installation.
Flexible Scalability – Supports parallel connection for higher power and larger battery capacity.

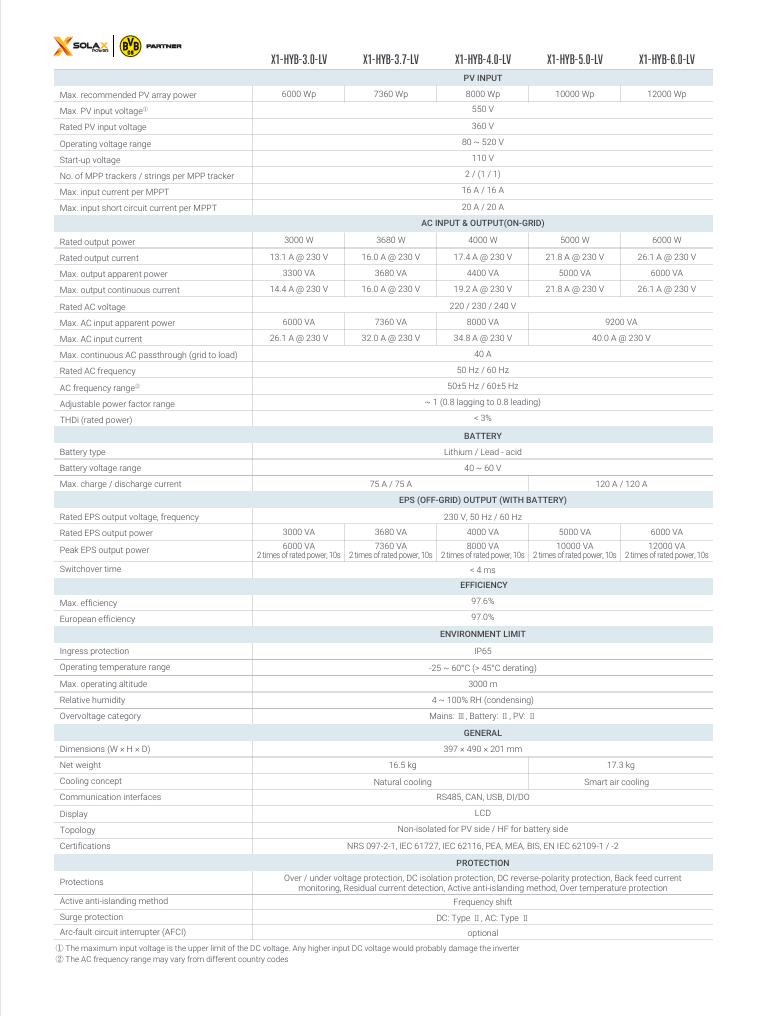

Product Detail

Max. PV input voltage	550 V	Rated PV input voltage	360v
Operating voltage range	80 ~ 520 V	Start-up voltage	110 V
No. of MPP trackers / strings per MPP tracker	2 / (1 / 1)	Max. input current per MPPT	16 A / 16 A
Max. input short circuit current per MPPT	20 A / 20	Rated AC frequency	50 Hz / 60 H
THDi (rated power)	< 3%	Ingress protection	IP65
Max. operating altitude	3000 m	Operating temperature range	-25 ~ 60°C (> 45°C derating
Dimensions (W × H × D)	397 × 490 × 201 mm	European efficiency	97.0%
