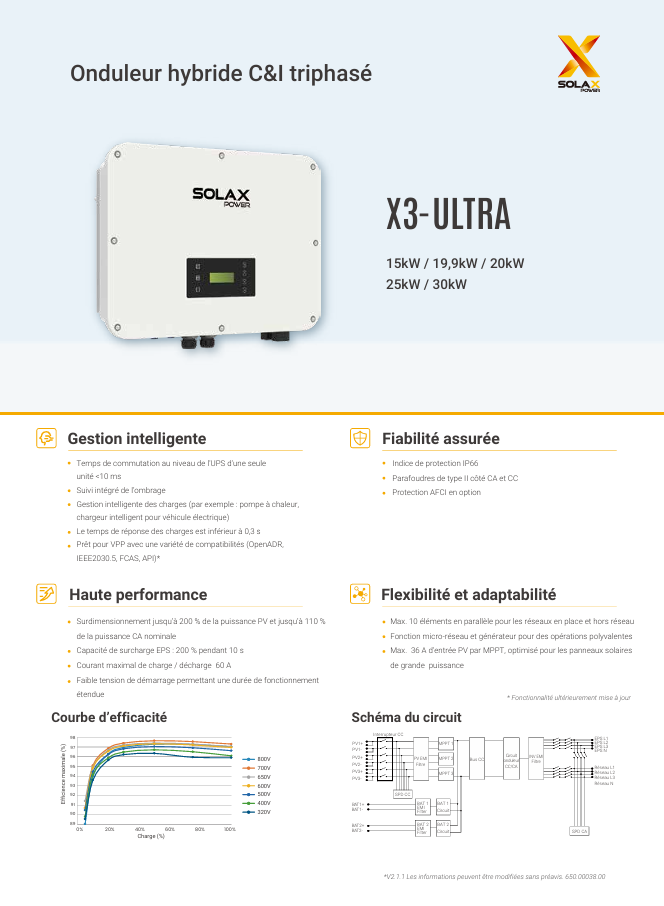

SolaX X3-ULT-19.9K 3-Phase Hybrid Inverter
| Output Type | Three Phase | Type | DC/AC Inverters |
| Brand Name | SOLAX | Inverter Efficiency | 96.5% |
| Place of Origin | Zhejiang, China | Model Number | solax X3-ULT-19.9K |
| Input Voltage | 160 - 950 d.c. | Output Voltage | 95V |
| Output Current | 90/190A | Output Frequency | 50-55 HZ;60-65HZ |
| Size | 696*526*240 mm(27.40*20.71*9.45in) | Weight | 46 kg(101.41lb) |
| Max. recommended PV array power | 30000 Wp | No. of MPP. trackers / strings per MPPT | 2 ( 2 / 2 ) |
| Max. input current per MPPT | 36 / 36 d.c. A | Rated output power | 15000 VA (AS4777 14999 VA) |
| Rated AC voltage | 3W / N / PE, 220 / 380 a.c. V 3W / N / PE, 230 / 400 a.c. V | Switchover time | <10 ms l7 |
| Net Weight | 46 kg | Dimensions (W /H / D） | 696x526x240 mm |
