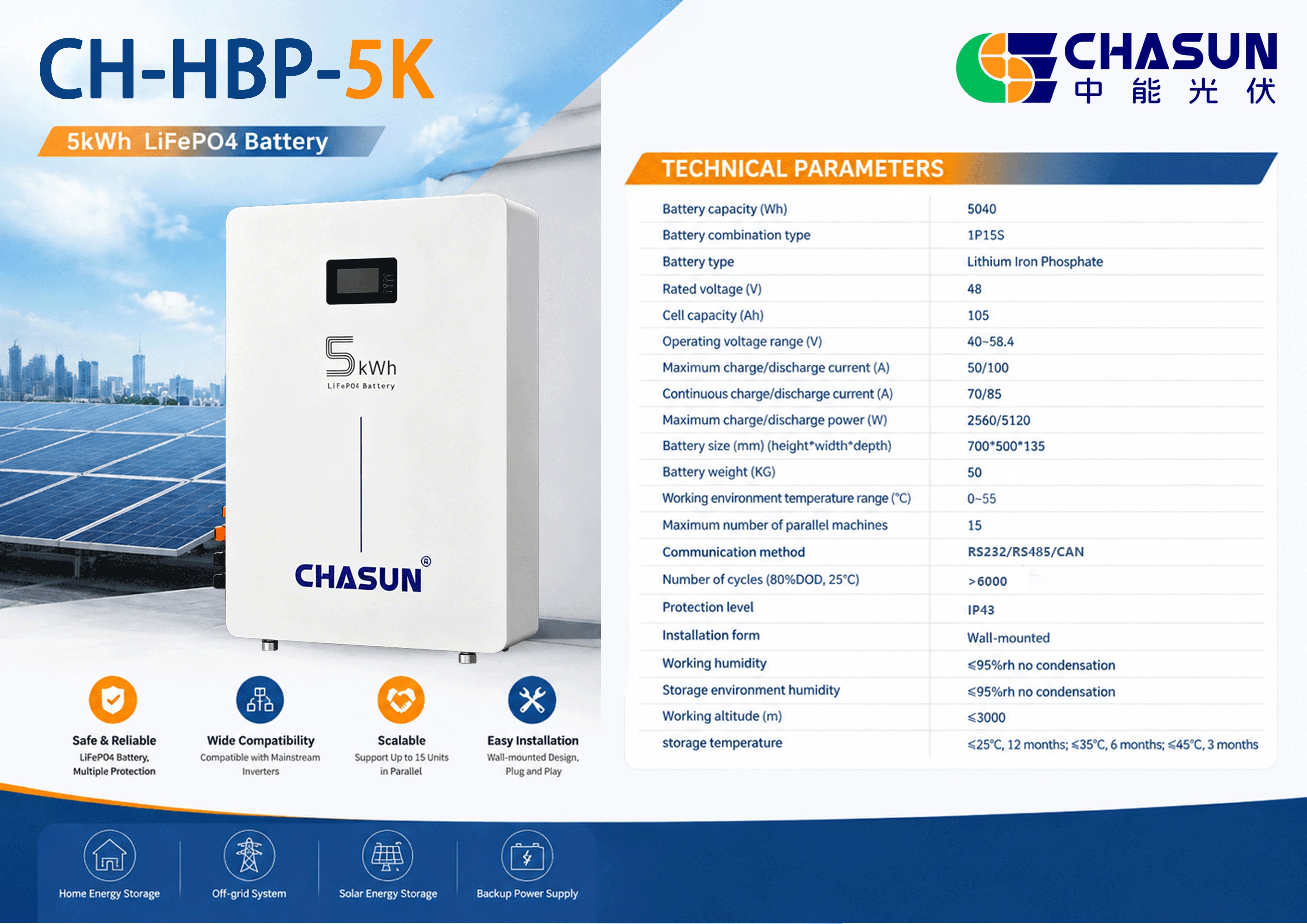

CHASUN 5kWh 48V LiFePO4 Battery Home Use

Short Description:

• 5kWh Capacity: 48V 105Ah LiFePO4 battery, safe and stable for home energy storage.
• Wall-Mounted Design: Space-saving, easy installation, and aesthetically pleasing.
• IP43 Protection: Dust and water resistant, suitable for indoor installation.
• Long Cycle Life: >6000 cycles (80% DOD, 25°C), durable and reliable.
• Flexible Expansion: Supports up to 16 units in parallel for scalable capacity.
• Wide Compatibility: RS232/RS485/CAN communication, compatible with GoodWe, Solis, and other multi-brand inverters.
• Smart BMS Protection: Multiple safety protections, 5-year warranty for peace of mind.

• Parameter	Value
  Model	CH-HBP-5K
  Battery Capacity	5040Wh (5.04kWh)
  Battery Type	Lithium Iron Phosphate (LiFePO4)
  Rated Voltage	48V
  Cell Capacity	105Ah
  Operating Voltage Range	40–58.4V
  Max Charge/Discharge Current	50A / 100A
  Continuous Charge/Discharge Current	70A / 85A
  Max Charge/Discharge Power	2560W / 5120W
  Cycle Life	>6000 cycles (80% DOD, 25°C)
  Communication	RS232 / RS485 / CAN
  Protection Level	IP43
  Installation	Wall-mounted
  Operating Temperature	0–55°C
  Max Parallel Units	15
  Dimensions (H×W×D)	700×500×135 mm
  Weight	50 kg
  Certification	CE, UN38.3, MSDS, RoHS

•
