The DDSU666 Single-phase electronic type guide rail mounting electric energy meters. Featured Image
  • The DDSU666 Single-phase electronic type guide rail mounting electric energy meters.
  • The DDSU666 Single-phase electronic type guide rail mounting electric energy meters.

The DDSU666 Single-phase electronic type guide rail mounting electric energy meters.

Short Description:

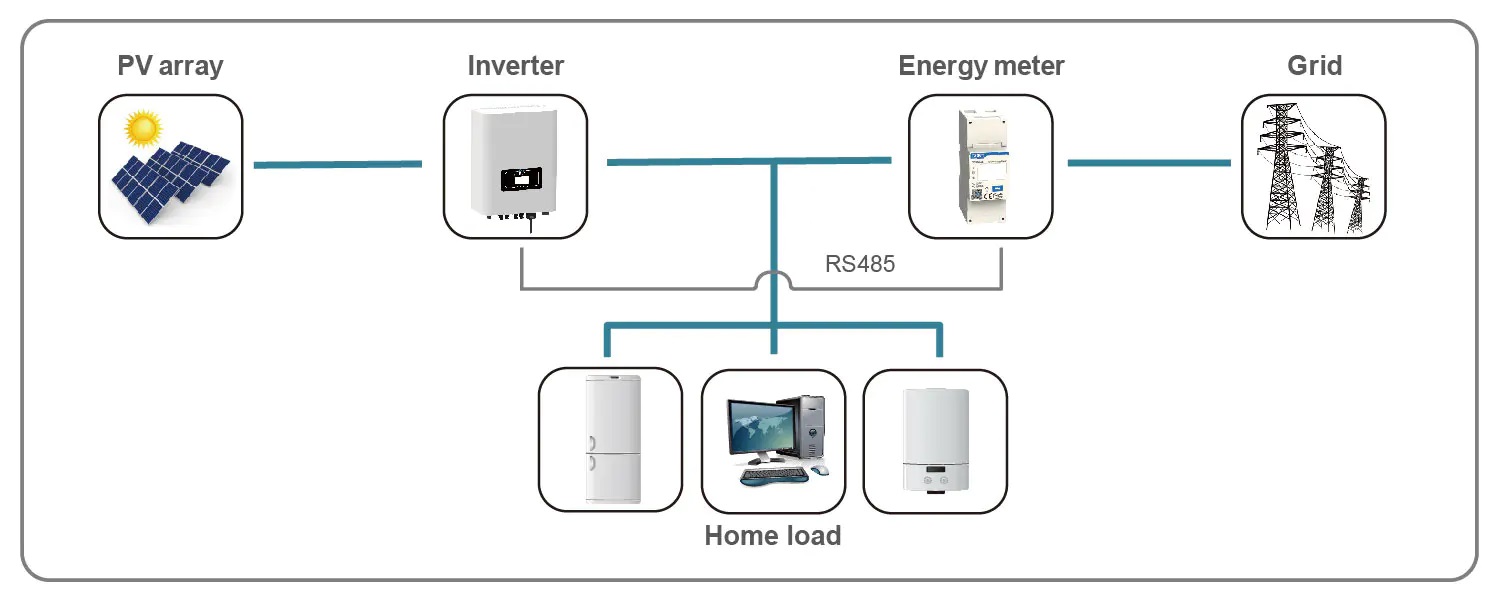

It is used to monitor and display the grid power (voltage, current frequency and energy), and transfer this info to solar inverter via RS485 communication in zero-export system.   The DTSU666 series three phase four wire electronic energy meter (din-rail) is designed based on power monitoring and energy metering demands for PV power plants etc. Mainly applied into the measurement and display for the grid parameters in the zero-export system, including grid voltage, current, active power, reactive power, frequency, etc.


Product Detail

Product Tags

Remotely shutdown function

DDSU666 Energy Meter

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

● Local LCD display, RS485 communication

● Adopting the standard DIN35mm din rail mounting

● Small volume, easy installation and easy communication

● Positive and reverse active power, four quadrant reactive power metering

Model CHNT DDSU666 EASTRON SDM230 Modbus EASTRON SDM 630-Modbus V2 EASTRON SDM630 MCT
Battery Data
Max. direct current measurement (A) 60 80 100 100 1-9999A (with CT)
Direct Voltage measurementbetween phases / 176-458V / 147-480V 50-950V
50-550V
Direct measurement betweenphase and neutral 176~264V 100-265V 176~276V 85~480V 20-550V
Accuracy Class
Active power Class1
Reactive power Class2
Power Supply
Power consumption ≤1W / 8VA ≤1.5W / 6VA ≤2W / 10VA ≤2W / 10VA ≤2W / 10VA
AC power supply input voltage                                     176-264V 100-265V 176-276V 85-480V 85-275V / 120-380V
AC power supply input frequency                                                     50/60Hz 50Hz 50/60Hz ±2% 50/60Hz ±2%
Generation Specifications
Dimenstions (L/H/W) in mm                                         36×85×66 100×72×66 36×99×63 72×100×66 72×94.5×65
Weight (kg)                                                                           0.21 0.44 0.21 0.42 0.29
Mounting options DIN Rail
Degree of protection                                                                                                                                           IP51
Display LCD
Communication interface RS485
Max. number of devices to connect                                                                                                                   32
Regulated working temperature range                    -25C~+55C -10C~+45C -25C~+55C
Limited working temperature range                         -40C~+70C 25C~+75C /
Humidity ≤75% 0~95%, non-Condensing
Warranty 1.5 years
