Short Description:

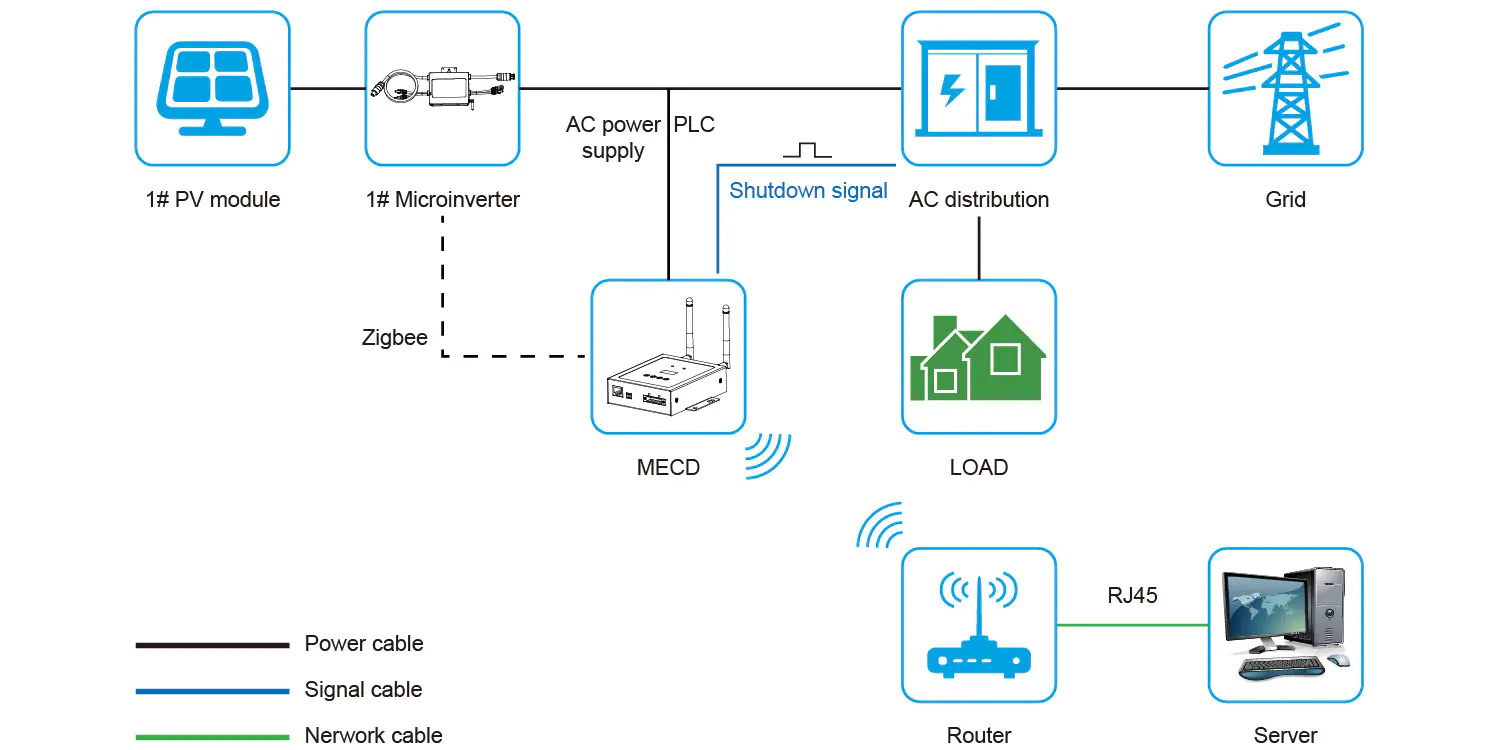

The MECD communications gateway collects and delivers modular performance data in real time, for comprehensive monitor and manage of your solar system, optimizing the performance of your solar system. With built-in quick shutdown application, the MECD is able to control the microinverter connected shutdown immediately when the dry contact is activated.

Product Detail

Product Tags

Remotely shutdown function


Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

● Built-in Zigbee, PLC and WIFI modular.

● Suitable for single-phase and three-phaseapplications.

● Enables remotely monitoring and management.

● OLED display and buttons, easy operation.

● Compact design and light in weight.

● Support quick shutdown remotely.

● Robust design, 3 years warranty.

Model MECD
Communication interface
Communication method Zigbee, PLC
Max. number of inverters connected 5、10、20、32 (Max.)
Communication to router WIFI
WIFI wireless security WEP, WPA2-PSK
RS485 Reserved
Max. distance (free space) PLC 300m; Zigbee 100m (Max. straight-line distance)
Power Supply
AC power supply 100 to 240V AC, 50/60Hz
Power consumption 5W typical, 10W Maxinum
Mechanical Data
Dimenstions (L/H/W) in mm 133.6×132×35.5 mm
Weight (kg)


Operation temperature range -20~+50C
Mounting method Wall-mounted
Display OLED and LED indicators
Grid type Single phase / three phase
Digital Input Control device connection
Compliance IEC60950, IEC61000-6-2, FCC Part15 Class B / Class C
Warranty 3 years
