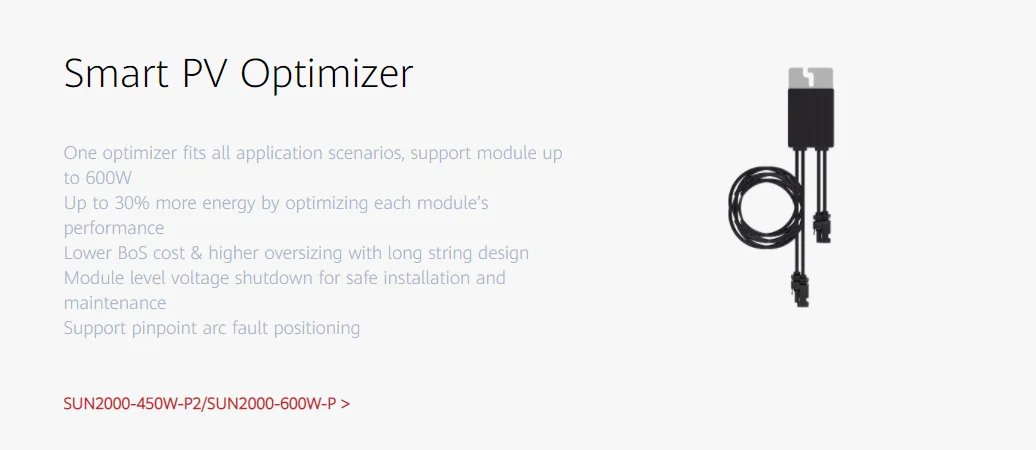

Genuine Factory Solar Optimizer SUN2000-600W Solar Products Inverter Optimizer Connector

✅ Precise 3-Phase Measurement – 3 voltage + 3 current channels for comprehensive data
✅ RS485 Communication – Easy integration with PV/storage monitoring systems
✅ 250A Split-Core CTs Included – Tool-free installation, no power interruption
✅ Wide Measurement Range – Ideal for C&I and large-scale solar+storage projects
✅ CE & RoHS Certified – Safe, compliant, and reliable

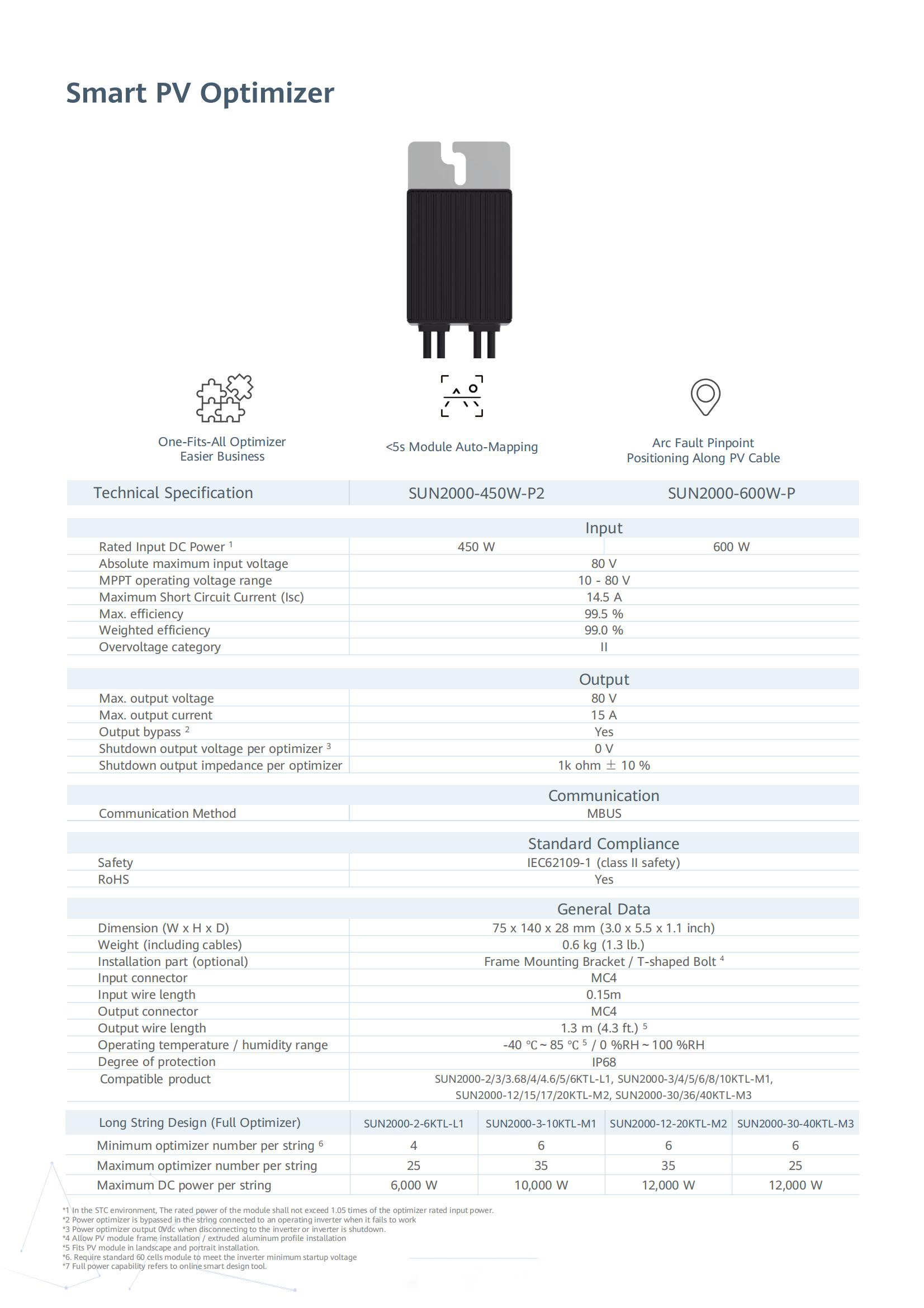

Product Detail

Rated Voltage	80V	Place of Origin	Jiangxi, China
Brand Name	chasun	Model Number	SUN2000-600w-p
Maximum Current	15A	Module Auto mapping	less 5s
MPPT operating voltage range	10 - 80 V	Max. efficiency	99.5%
Shutdown output impedance per optimizer	1k ohm ± 10 %	Communication Method	MBUS
Safety	IEC62109-1 (class II safety)	Dimension (W x H x D)	75 x 140 x 28 mm (3.0 x 5.5 x 1.1 inch)
Weight (including cables)	0.6 kg (1.3 lb.)	Operating temperature / humidity range	-40 ℃~85 ℃ 5 / 0 %RH~100 %RH
Degree of protection	IP68	Selling Units	Single item
Package size per batch	39X39X20 cm	Gross weight per batch	1.000 kg
