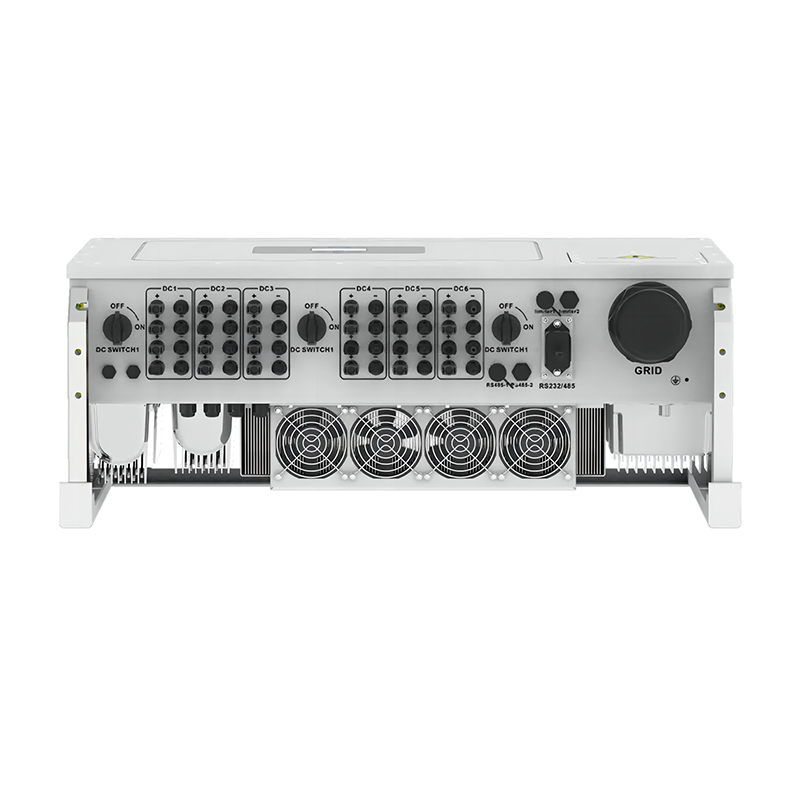

Deye String Inverter SUN70/75/80/90/100/110K-G03

Short Description:

SUN70/75/80/90/100/110K-G03 | 70-110kW | Three Phase | 6 MPPT

Higher yields / Safe & Reliable / Smart / User-friendly

The Deye 70-110K grid-connected inverter is suited for medium and large-scale commercial rooftops and ground-mounted solar PV system in which reliability and stability are important. the full series inverter has 30% DC input oversizing ratio and 10% AC output overloading ratio, offering a faster return on investment.

Product Detail

Product Tags

Remotely shutdown function

SUN70 75 80 90 100 110K-G03主图4

When an accident occurs in a photovoltaic power plant, the intelligent monitoring platform can quickly sense the abnormal situation and immediately send an alarm notification to relevant staff so that timely response measures can be taken. At the same time, through the wireless connection with the platform, the inverter product can automatically perform remote shutdown operations in the shortest time to avoid further expansion of the accident or causing more losses.

● Max. 6 MPP trackers, Max. efficiency up to 98.8%

● In international trade, the quantity of export goods declared to customs is zero

● String intelligent monitoring (optional)

● Wide output voltage range


● Anti-PID function (Optional)

Smart Monitoring Platform

Model                                        SUN-70K-G03        SUN-75K-G03        SUN-80K-G03        SUN-90K-G03       SUN-100K-G03      SUN-110K-G
 Input Side
Max. DC Input Power (kW)   91 97.5       104 135 150      150
Max. DC Input Voltage (V) 1000
  Start-up DC Input Voltage (V)                                                                                                                                              250
MPPT Operating Range (V) 200-850
Max. DC Input Current (A) 40+40+40+40 40+40+40+40+40+40
Max. Short Circuit Current (A) 60+60+60+60 60+60+60+60+60+60
No.of MPP Trackers 4 6
No.of Strings per MPP Tracker 4+4+4+4 4+4+4+4+4+4
Output Side
Rated Output Power (kW) 70 75 80 90 100 110
Max. Active Power (kW) 77 82.5 88 99 110 121
Nominal Output Voltage / Range (V)                                                                                                       3L/N/PE 220/380V, 230/400V
Rated Grid Frequency (Hz) 50 / 60 (Optional)
Operating Phase Three Phase
Rated AC Grid Output Current (A) 106. 1/101.5 113.6/108.7 121.2/115.9 136.4/130.4 151.5/144.9 166.7/159.4
Rated AC Grid Output Current (A) 116.7/111.6 125/119.6 133.3/127.5 150/143.5 166.7/159.4 183.3/175.4
Output Power Factor    0.8 leading to 0.8 lagging
Grid Current THD <3%
DC Injection Current (mA) <0.5%
Grid Frequency Range 45~55 or 55~65 (Optional)98.8%
Max. Efficiency
Euro Efficiency 98.3%
MPPT Efficiency >99%Yes
DC Reverse-Polarity Protection
AC Short Circuit Protection Yes
AC Output Overcurrent Protection Yes
Output Overvoltage Protection Yes
 Insulation Resistance Protection Yes
Ground Fault Monitoring Yes
Anti-islanding Protection Yes
Temperature Protection Yes
 Integrated DC Switch Yes
Remote Software Upload Yes
Remote Change of Operating Parameters Yes
Surge Protection DC Type II / AC Type II
General Data
Cabinet Size (WxHxD mm)      838×568×326 (Excluding Connectors and Brackets)
Weight (kg) 81
Topology Transformerless
 Internal Consumption <1W (Night)
Running Temperature -25-65℃, >45℃ Derating
 Ingress Protection IP65
Noise Emission (Typical) ≤55 dB
Cooling Concept Smart Cooling
Permissible Altitude (m) 4000
Warranty 5 Years
Grid Connection Standard VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549- 1, G98, G99, C10- 11,
UNE217002, NBR16149/NBR16150
Operating Surroundings Humidity 0- 100%
Safety EMC / Standard                                                                                                  IEC/EN 61000-6- 1/2/3/4, IEC/EN 62109- 1, IEC/EN 62109-2
DC Connection MC-4 Mateable
AC Connection IP65 Rated Plug
Display LCD 240 × 160
 Interface RS485/RS232/Wifi/LAN
