Product
15kWh 51.2V 150A Lithium Battery, All-in-One Home Energy Storage Solution, Scalable, IP55, Scalable Parallel, APP

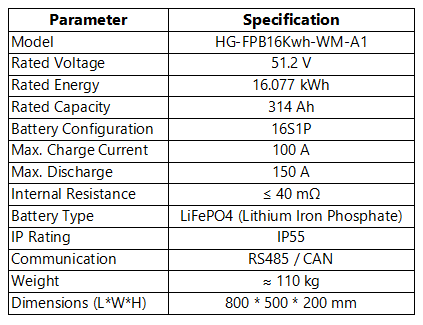

| Technical Specifications Sheet | |||
| Parameter | Specification | ||
| Model | HG-FPB16Kwh-WM-A1 | ||
| Rated Voltage | 51.2 V | ||
| Rated Energy | 16.077 kWh | ||
| Rated Capacity | 314 Ah | ||
| Battery Configuration | 16S1P | ||
| Max. Charge Current | 100 A | ||
| Max. Discharge Current | 150 A | ||
| Internal Resistance | ≤ 40 mΩ | ||
| Battery Type | LiFePO4 (Lithium Iron Phosphate) | ||
| IP Rating | IP55 | ||
| Communication | RS485 / CAN | ||
| Weight | ≈ 110 kg | ||
| Dimensions (L*W*H) | 800 * 500 * 200 mm | ||

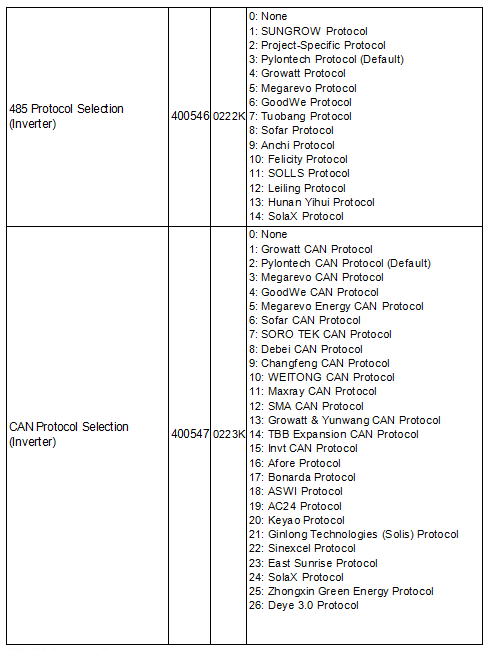

| 485 Protocol Selection (Inverter) | 400546 | 0222K | 0: None 1: SUNGROW Protocol 2: Project-Specific Protocol 3: Pylontech Protocol (Default) 4: Growatt Protocol 5: Megarevo Protocol 6: GoodWe Protocol 7: Tuobang Protocol 8: Sofar Protocol 9: Anchi Protocol 10: Felicity Protocol 11: SOLLS Protocol 12: Leiling Protocol 13: Hunan Yihui Protocol 14: SolaX Protocol |
| CAN Protocol Selection (Inverter) | 400547 | 0223K | 0: None 1: Growatt CAN Protocol 2: Pylontech CAN Protocol (Default) 3: Megarevo CAN Protocol 4: GoodWe CAN Protocol 5: Megarevo Energy CAN Protocol 6: Sofar CAN Protocol 7: SORO TEK CAN Protocol 8: Debei CAN Protocol 9: Changfeng CAN Protocol 10: WEITONG CAN Protocol 11: Maxray CAN Protocol 12: SMA CAN Protocol 13: Growatt & Yunwang CAN Protocol 14: TBB Expansion CAN Protocol 15: Invt CAN Protocol 16: Afore Protocol 17: Bonarda Protocol 18: ASWI Protocol 19: AC24 Protocol 20: Keyao Protocol 21: Ginlong Technologies (Solis) Protocol 22: Sinexcel Protocol 23: East Sunrise Protocol 24: SolaX Protocol 25: Zhongxin Green Energy Protocol 26: Deye 3.0 Protocol |
