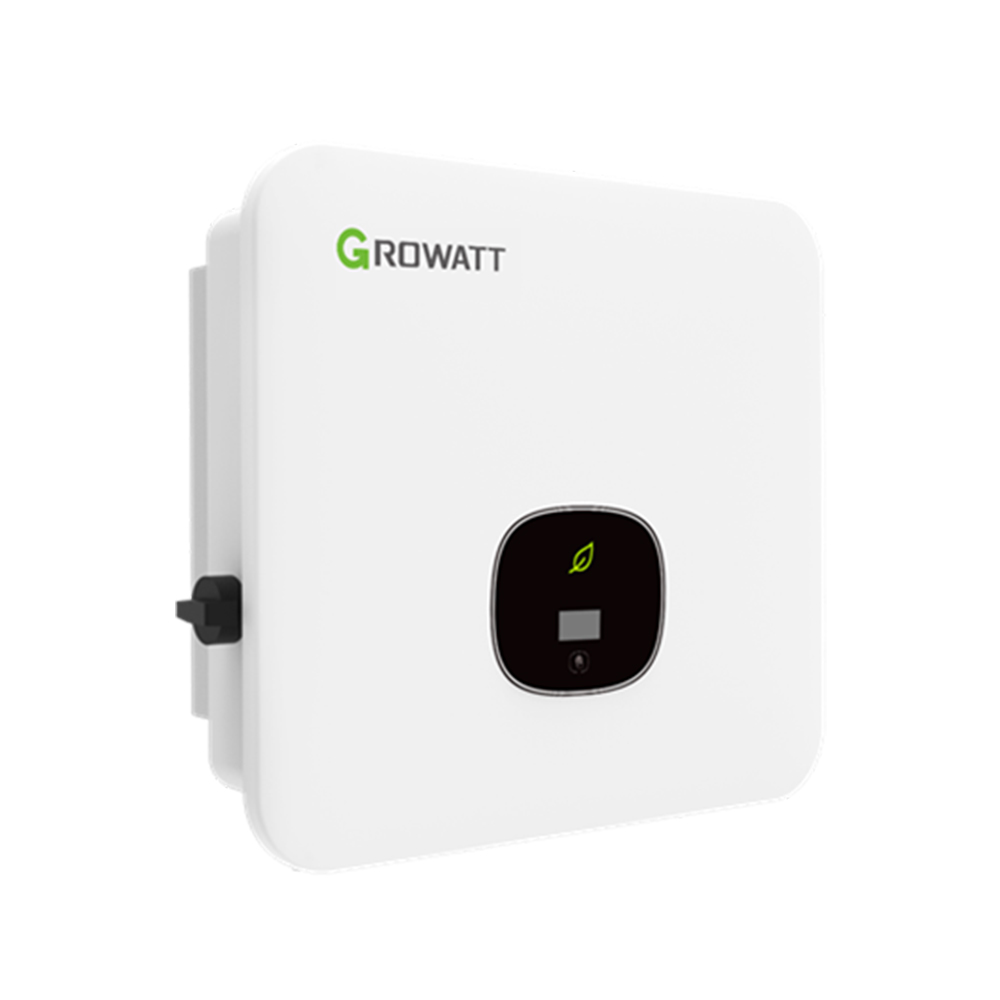

GROWATT Residential PV Inverter MOD 3-15KTL3-X/XH
Remotely shutdown function
● Battery ready, future proof
● Dual MPP Trackers
● Type II SPD on DC and AC side
● AFCI function optional
● 24h self-consumption monitoring
● Battery ready, future proof
● Dual MPP Trackers
● Type II SPD on DC and AC side
● AFCI function optional
● 24h self-consumption monitoring
Primary Specification
|
Datasheet |
MOD 10KTL3-X |
MOD11KTL3-X |
MOD12KTL3-X |
MOD13KTL3-X |
MOD15KTL3-X |
||
|
Input data (DC) |
|||||||
|
Max. recommended PV power (for module STC) |
15000W |
16500W |
18000W |
19500W |
22500W |
||
|
Max. DC voltage |
1100V |
||||||
|
Start voltage |
160V |
||||||
|
Nominal voltage |
580V |
||||||
|
MPPT voltage range |
140V- 1000V |
||||||
|
No. of MPP trackers |
2 |
||||||
|
No. of PV strings per MPP tracker |
1 |
1 |
1/2 |
1/2 |
1/2 |
||
|
Max. input current per MPP tracker |
13A |
13A |
13/26A |
13/26A |
13/26A |
||
|
Max. short-circuit current per MPP tracker |
16A |
16A |
16/32A |
16/32A |
16/32A |
||
|
Output data (AC) |
|||||||
|
AC nominal power |
10000W |
11000W |
12000W |
13000W |
15000W |
||
|
Max. AC apparent power |
11000VA* |
12100VA |
13200VA |
14300VA |
16500VA |
||
|
Nominal AC voltage (range*) |
22 |
0V/ 380V, 230V/400V ( 340-440 |
V) |
||||
|
AC grid frequency (range*) |
50/60 Hz (45-55Hz/55-65 Hz) |
||||||
|
Max. output current |
16.7A |
18.3A |
20A |
21.7A |
25A |
||
|
Adjustable power factor |
0.8leading …0.8lagging |
||||||
|
THDi |
<3% |
||||||
|
AC grid connection type Efficiency |
3W+N+PE |
||||||
|
MAX. efficiency |
98.6% |
||||||
|
European efficiency |
98. 1% |
98. 1% |
98.2% |
98.2% |
98.2% |
||
|
MPPT efficiency |
99.9% |
||||||
|
Protection devices |
|||||||
|
DC reverse polarity protection |
Yes |
||||||
|
DC Switch |
Yes |
||||||
|
AC/DC surge protection |
Type II / Type II |
||||||
|
Insulation resistance monitoring |
Yes |
||||||
|
AC short-circuit protection |
Yes |
||||||
|
Ground fault monitoring |
Yes |
||||||
|
Grid monitoring |
Yes |
||||||
|
Anti-islanding protection |
Yes |
||||||
|
Residual-current monitoring unit |
Yes |
||||||
|
String fault monitoring |
Yes |
||||||
|
AFCI protection |
Optional |
||||||
|
General data |
|||||||
|
Dimensions (W / H / D) |
425/387/178mm |
||||||
|
Weight |
14kg |
14kg |
16kg |
16kg |
16kg |
||
|
Operating temperature range |
–25°C ... +60°C |
||||||
|
Nighttime power consumption |
< 1W |
||||||
|
Topology |
Transformerless |
||||||
|
Cooling |
Natural convection |
||||||
|
Protection degree |
IP66 |
||||||
|
Relative humidity |
0~100% |
||||||
|
Altitude |
4000m |
||||||
|
DC connection |
H4/MC4(Optional) |
||||||
|
AC connection |
Connector |
||||||
|
Disply |
Connector |
||||||
|
Interfaces:USB/RS485/WIFI/GPRS/LAN/RF |
Yes/yes/Optional/Optional/Optional/Optional |
||||||
|
Warranty:5/10years |
Yes/Optional |
||||||
|
CE,VDE0126,Greece,EN50549,C10/C11,UTE C15_712,ICE62116,IEC61727,ICE 60068,ICE 61683,CEI10-21,N4105,TOR Erzeuger G 98/G99,G100,AS4777,UNE217001,UNE206007,PO12.2 |
|||||||
* For Belgium C10/C1 1, MOD 10KTL3-X max . output power is limit to 10000VA .
