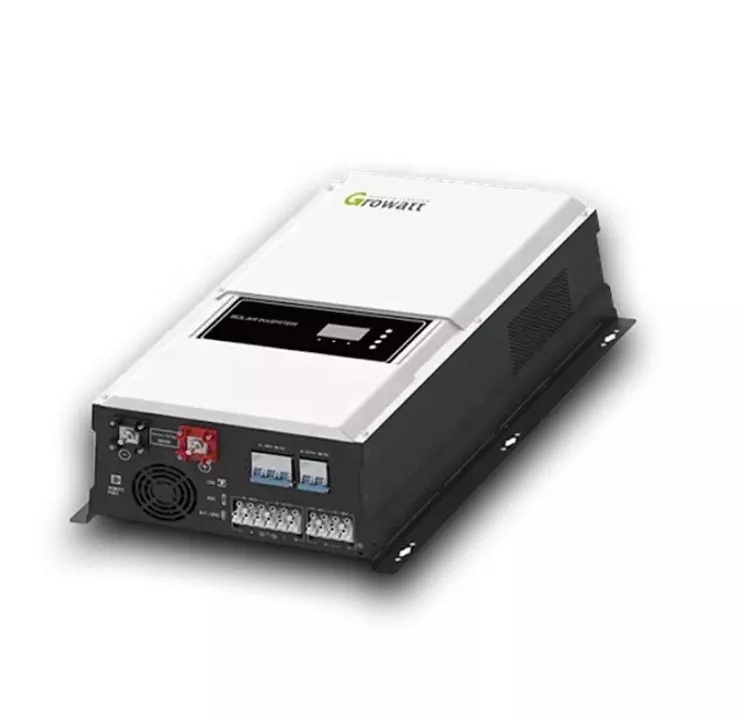

GROWATT Off-Gird Storage Inverter SPF 4000-12000T DVM/-MPV

Short Description:

SPF 4000-12000T DVM/-MPV | 4-12kW | Single Phase |  120/240Vac

High yields / Smart & Reliable / Scalable & Flexible

SPF 4000-12000T DVM/-MPV supports WiFi and GPRS communication for remote monitoring and it is suitable for PVkeeper platform for local commissioning, with built-in low frequency transformer. It supports multiple power sources, such as PV, battery, diesel generator and utility and compatible with lithium, lead-acid and GEL batteries.

Product Detail

Product Tags

Remotely shutdown function



SPF low-frequency series inverter adopts powerful transformer which has the advantage of impact loads, like pumps, motors, and some high-torque devices.

All kinds of communication methods available

● ShineGPRS-F

● ShineWiFi-F

Powerful free platforms for global customers

monitoring platform

● Low frequency inverter 120/240Vac Split Phase output

● Integrated MPPT charge controller

● Optional WIFI/ GPRS remote monitoring

● Built-in pure copper low frequency transformer

● Configurable grid or solar input priority

Primary Specification

Datasheet SPF 4000T DVM SPF 5000T DVM SPF 6000T DVM SPF 8000T DVM SPF 10000T DVM SPF 12000T DVM
Battery Voltage 48VDC
BatteryType Lithium/Lead-acid
Rated Power 4KW 5KW 6KW 8KW 10KW 12KW
Surge Rating 12KW 15KW 18KW 24KW 30KW 36KW
Waveform Pure sine wave/ same as input
(bypass mode)
Nominal Output Voltage RMS 104-110-115-120/208-220-230-240VAC(optional)
Output Frequency 50Hz/60Hz +/-0.3 Hz
Inverter Efficiency(Peak) >85%
Transfer Time 10ms(max)
Maximum PV Charge Cument 80A 120A
Maximum PV Array Power
Number of independent MPP trackers/
strings per MPP tracker
5000W 7000W
1/1 2/1
MPPT Range @ Operating Voltage(VDC) 60~145VDC 60~145VDC
Maximum PV Array Open Circuit Voltage 150VDC 150VDC
Maximum Efficiency >98% >98%
Voltage 240VAC
Selectable Voltage Range 184~272VAC(UPS);154~272VAC(APL)
Frequency Range 50Hz/60Hz (Auto sensing)
Max. Charging Current 40A 50A 60A 70A 80A 100A
Protection Degree IP20
Dimensions (W/H/D) 360/540/218mm 360/540/218mm 360/540/218mm 380/650/225mm 380/650/225mm 380/650/225mm
Weight 42kg 47kg 52kg 64kg 66kg 75kg
Operation Temperature Range 0℃ to 45℃
