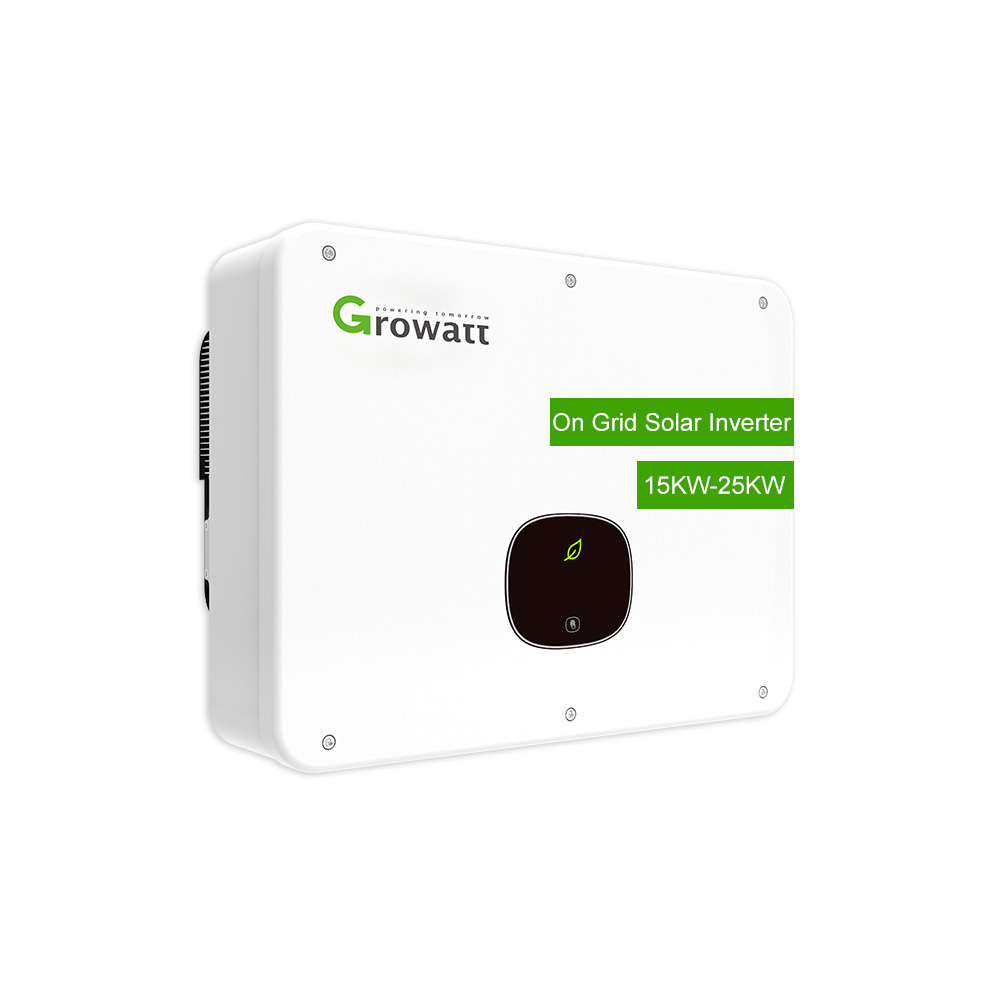

GROWATT Commercial & Industrial PV Inverter MID 15-25KTL3-X
Remotely shutdown function
All kinds of communication methods available
● ShineLink-X
● ShineWiFi-X/ShineLan-X/Shine4G-X
● ShineMaster
● SEM
Powerful free platforms for global customers
● Max.efficiency 98.75%
● Dual MPP trackers
● Touch key and OLED display
● Type II SPD on AC and DC side
● AFCI function optional
Primary Specification
|
Datasheet |
MID15KTL3-X |
MID17KTL3-X |
MID20KTL3-X |
MID22KTL3-X |
MID25KTL3-X |
|
Input data (DC) |
|||||
|
Max. recommended PV power (for module STC) |
22500W |
25500W |
30000W |
33000W |
37500W |
|
Max. DC voltage |
1100V |
||||
|
Start Voltage |
250V |
||||
|
Normal Voltage |
200V- 1000V |
||||
|
MPPT voltage range |
580V |
||||
|
No. of MPP trackers/strings per MPP tracker |
2/2 |
2/2 |
2/2 |
2/2 |
2/3 |
|
Max.input current per MPP tracker |
27A |
27A |
27A |
27A |
27A/40.5A |
|
Max. short-circuit current per MPP tracker Output data (AC) |
33.8A |
33.8A/50.7A |
|||
|
Rated AC output power |
15000W |
17000W |
20000W |
22000W |
25000W |
|
Max. AC apparent power |
16600VA |
18800VA |
22000VA |
24400VA |
27700VA |
|
Nominal AC voltage(range*) |
230V/400V; 340-440V |
||||
|
AC grid frequency;(range*) |
50/60 Hz; 45~55Hz/55-65 Hz |
||||
|
Max. output current |
24.2A |
27.4A |
31.9A |
35.5A |
40.2A |
|
Adjustable power factor |
0.8 leading - 0.8 lagging |
||||
|
THDi |
<3% |
||||
|
AC grid connection type Efficiency |
3W+ N + PE |
||||
|
Max.efficiency |
98.75% |
||||
|
European efficiency |
98.6% |
||||
|
MPPT efficiency |
99.9% |
||||
|
Protection devices |
|||||
|
DC reverse polarity protection |
Yes |
||||
|
DC Switch |
Yes |
||||
|
AC/DC surge protection |
Type II / Type II |
||||
|
Insulation resistance monitoring |
Yes |
||||
|
AC short-circuit protection |
Yes |
||||
|
Ground fault monitoring |
Yes |
||||
|
Grid monitoring |
Yes |
||||
|
Anti-islanding protection |
Yes |
||||
|
Residual-current monitoring unit |
Yes |
||||
|
String monitoring |
Yes |
||||
|
AFCI protection |
Optional |
||||
|
General data |
|||||
|
Dimensions (W / H / D) |
525/395/222mm |
||||
|
Weight |
23kg |
||||
|
Operating temperature range |
–25 °C ... +60 °C |
||||
|
Self-Consumption (night) |
< 1W |
||||
|
Topology |
Transformerless |
||||
|
Cooling |
Smart air cooling |
||||
|
Protection degree |
IP65 |
||||
|
Relative Humidity |
0~100% |
||||
|
Altitude |
4000m |
||||
|
DC connection |
H4/MC4(Optional) |
||||
|
AC connection |
Cable gland+OT terminal |
||||
|
Display |
OLED+LED/WIFI+APP |
||||
|
Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN |
Yes/Yes /Optional/Optional/Optional/Optional |
||||
|
Warranty: 5 years / 10 years |
Yes/Optional |
||||
|
E, VDE0126, Greece, EN50549- 1, C10/C11, UTE C 15-712, IEC62116, IEC61727, IEC 60068, IEC 61683, CEI0-21, N4105, G98/G99, G100, KSC8565 |
|||||
* The AC voltage range and frequency range may var y depending on specific countr y grid standard .
A ll specifications are subject to change without notice .
