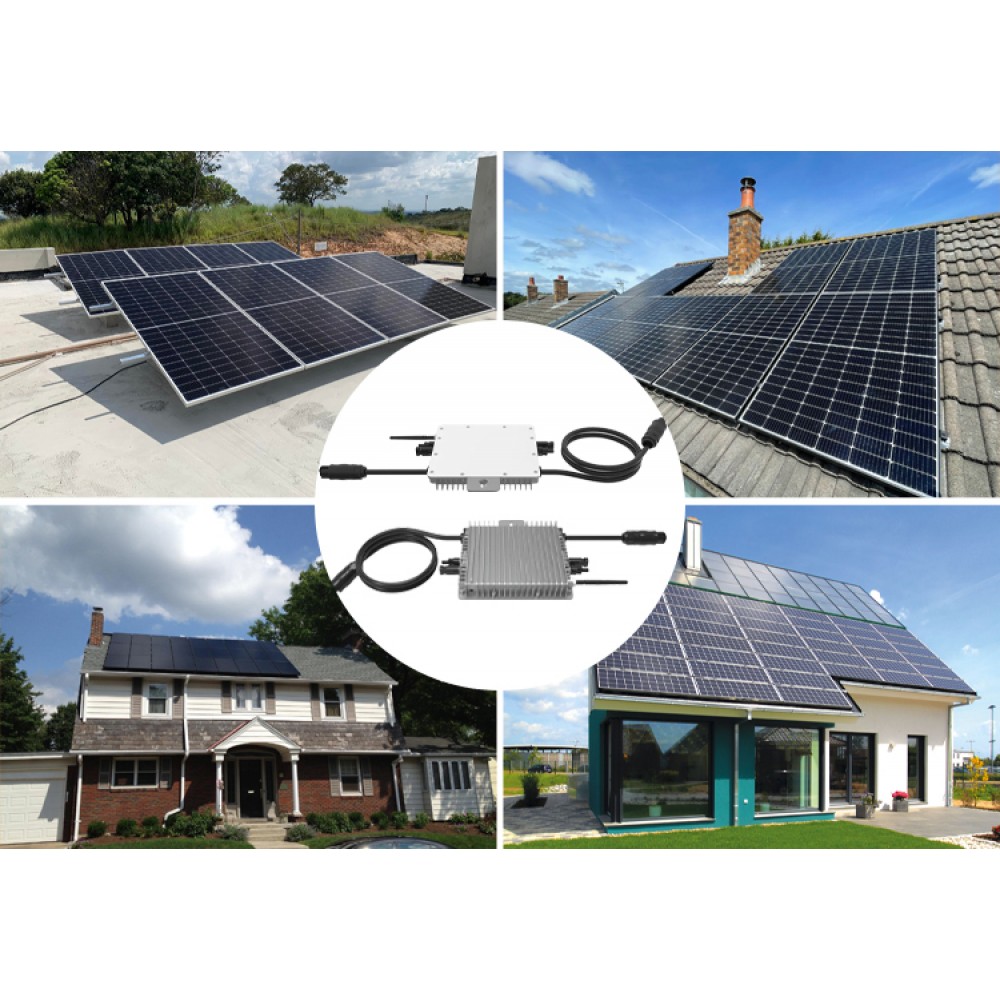

Deye Micro-Inverter SUN1300-2000G3-US-220/EU-230
Remotely shutdown function
Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
● Rapid shutdown function
● IP67 protection degree，10 years warranty
● Support reactive power compensation
● 4 MPP trackers, module level monitoring
● Max. DC input current of 13A,adapt to 600W PV module
● Zigbee or WIFI communication
Smart Monitoring Platform
| Model | SUN1300G3 -US-220 |
SUN1300G3 -EU-230 |
SUN1600G3 -US-220 |
SUN1600G3 -EU-230 |
SUN2000G3 -US-220 |
SUN2000G3 -EU-230 |
||||||
| Input Data (DC) | ||||||||||||
| Recommended Input Power (STC) | 210-420W (4 Pieces) | 210-500W (4 Pieces) | 210-600W (4 Pieces) | |||||||||
| Maximum input DC Voltage (V) 60 | ||||||||||||
| MPPT Voltage Range (V) | 25-55 | |||||||||||
| Full Load DC Voltage Range (V) | 26.5-55 | 33-55 | 40-55 | |||||||||
| Max. DC Short Circuit Current (A) | 4×19.5 | |||||||||||
| Max. Input Current (A) | 4×13 | |||||||||||
| No.of MPP Trackers | 4 | |||||||||||
| No.of Strings per MPP Tracker 1 | ||||||||||||
| Output Data (AC) | ||||||||||||
| Max. Output Apparent Power (VA) | 1300 | 1600 | 2000 | |||||||||
| Rated output Power (W) | 1300 | 1600 | 2000 | |||||||||
| Rated output Current (A) | 5.9 | 5.7 | 7.3 | 7 | 9.1 | 8.7 | ||||||
| Nominal Voltage / Range (this may vary with grid standards) |
220V/ 0.85Un- 1. 1Un |
230V/ 0.85Un- 1. 1Un |
220V/ 0.85Un- 1. 1Un |
230V/ 0.85Un- 1. 1Un |
220V/ 0.85Un- 1. 1Un |
230V/ 0.85Un- 1. 1Un |
||||||
| Nominal Frequency / Range | 50 / 60Hz | |||||||||||
| Extended Frequency / Range | 45-55Hz / 55-65Hz | |||||||||||
| Power Factor | >0.99 | |||||||||||
| Maximum Units per Branch
Efficiency |
4 | 4 | 3 | |||||||||
| CEC Weighted Efficiency | 95% | |||||||||||
| Peak Inverter Efficiency | 96.5% | |||||||||||
| Static MPPT Efficiency | 99% | |||||||||||
| Night Time Power Consumption | 50mW | |||||||||||
| Mechanical Data | ||||||||||||
| Ambient Temperature Range | -40-60℃, >45℃ Derating | |||||||||||
| Cabinet Size (WxHxD mm) | 267×300×42.5 (Excluding Connectors and Brackets) | |||||||||||
| Weight (kg) | 5.2 | |||||||||||
| Cooling | Free Cooling | |||||||||||
| Enclosure Environmental Rating | IP67 | |||||||||||
| Features | ||||||||||||
| Communication | WIFI | |||||||||||
| Grid Connection Standard | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549- 1, G98, G99, C10- 11, UNE217002, NBR16149/NBR16150 |
|||||||||||
| Safety EMC / Standard | UL 1741, IEC62109- 1/-2, IEC61000-6- 1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3 | |||||||||||
| Warranty | 10 Years | |||||||||||
