SolaX OG Series 5-6kW Single Phase Off-Grid Solar Inverter
| Output Type | Single | Type | DC/AC Inverters |
| Brand Name | chasun | Input Voltage | 70-580V |
| Inverter Efficiency |
96.5% | Model Number | SolaXX1BOOST 3-6KW |
| Output Current | 14.3-26.3A | Output Frequency |
50/60Hz |
| Output Voltage | 220/230/240;180~280 | Place of Origin | Zhejiang, China |
| Size | 341.5/430/143mm | Weight | 13.3-15kg |
| Product name | Solax Solar Inverter | PV Input Power | 3KW-6KW |
| MPPT Voltage | 70-580V | Max. InputCurrent perMPPT (A) | 14A |
| Number ofMPP Trackers | 2 | Number of Strings per |
1 |
| DC Surge Protection |
Type IIl | AC SurgeProtection | Type IIl |

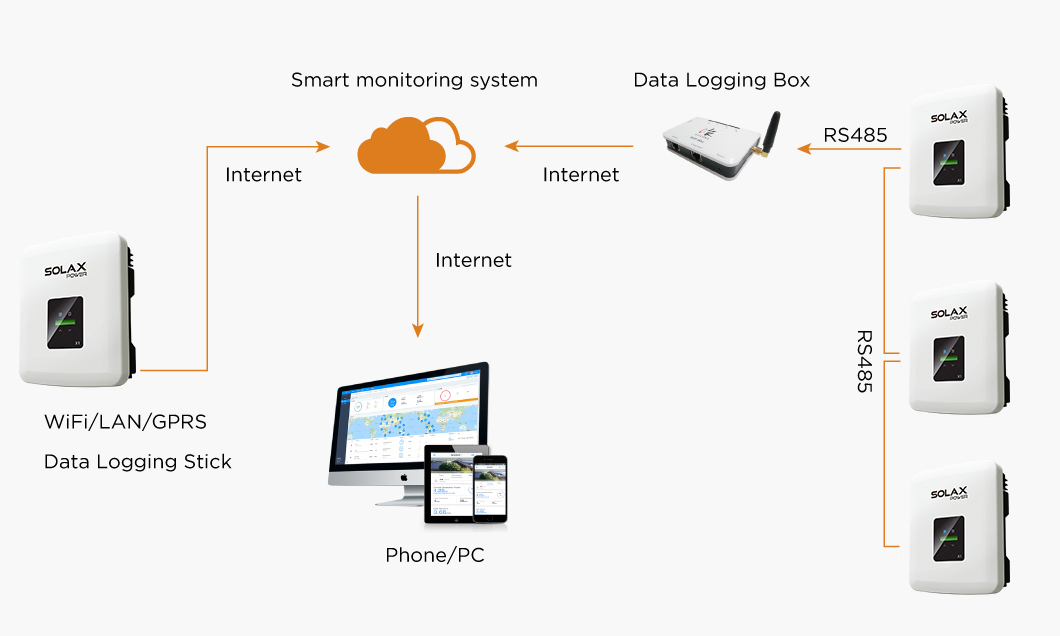

| Communicatio n Interface |
RS485/DRM/Pocket WiFi |
Cooling concept |
Natural cooling |
