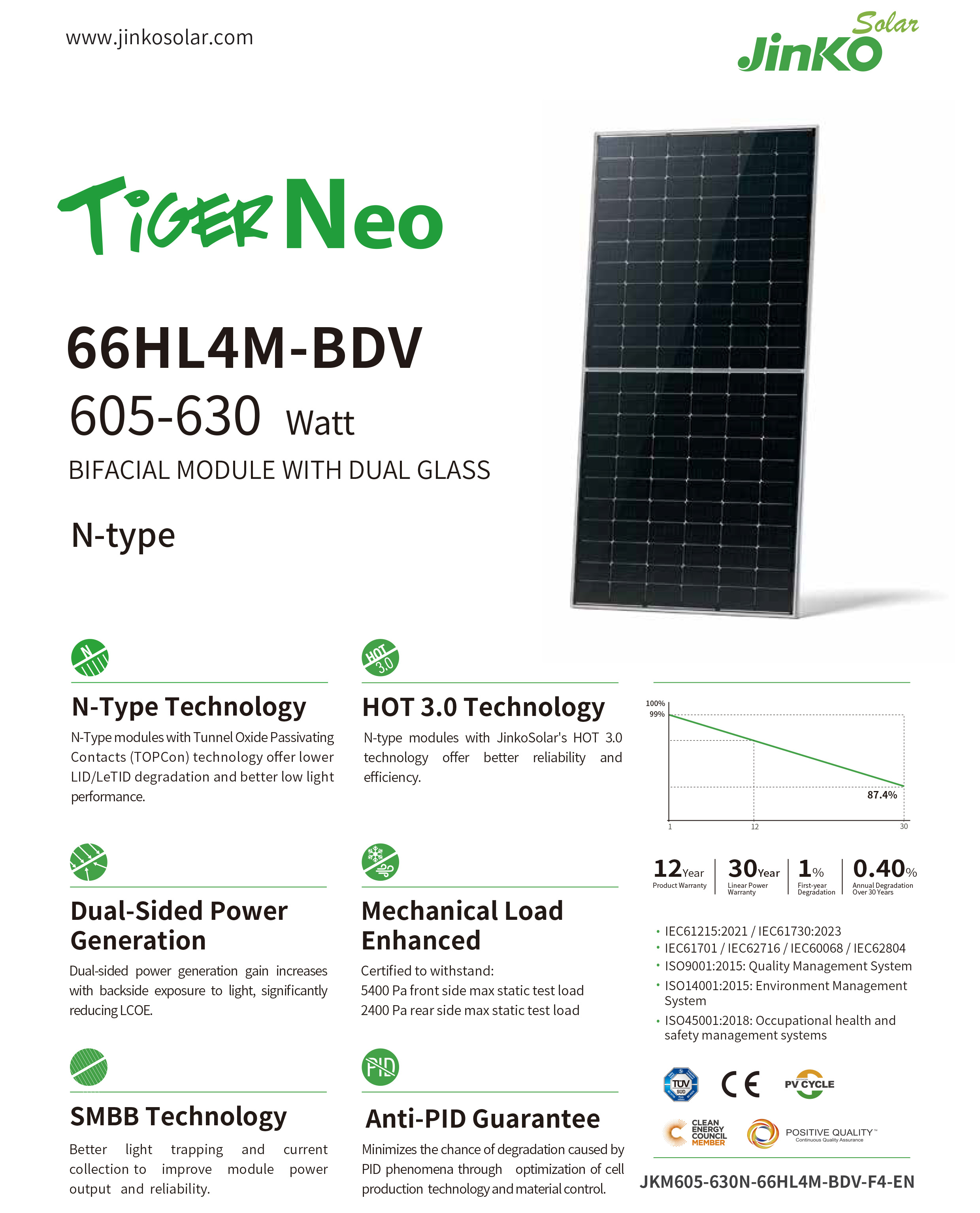

Jinko Topcon Bifacial Solar Panel 605W 610W 615W 620W 625W 630W Tiger Neo N-Type Best Energy Solar Power Panel Kits for Home System

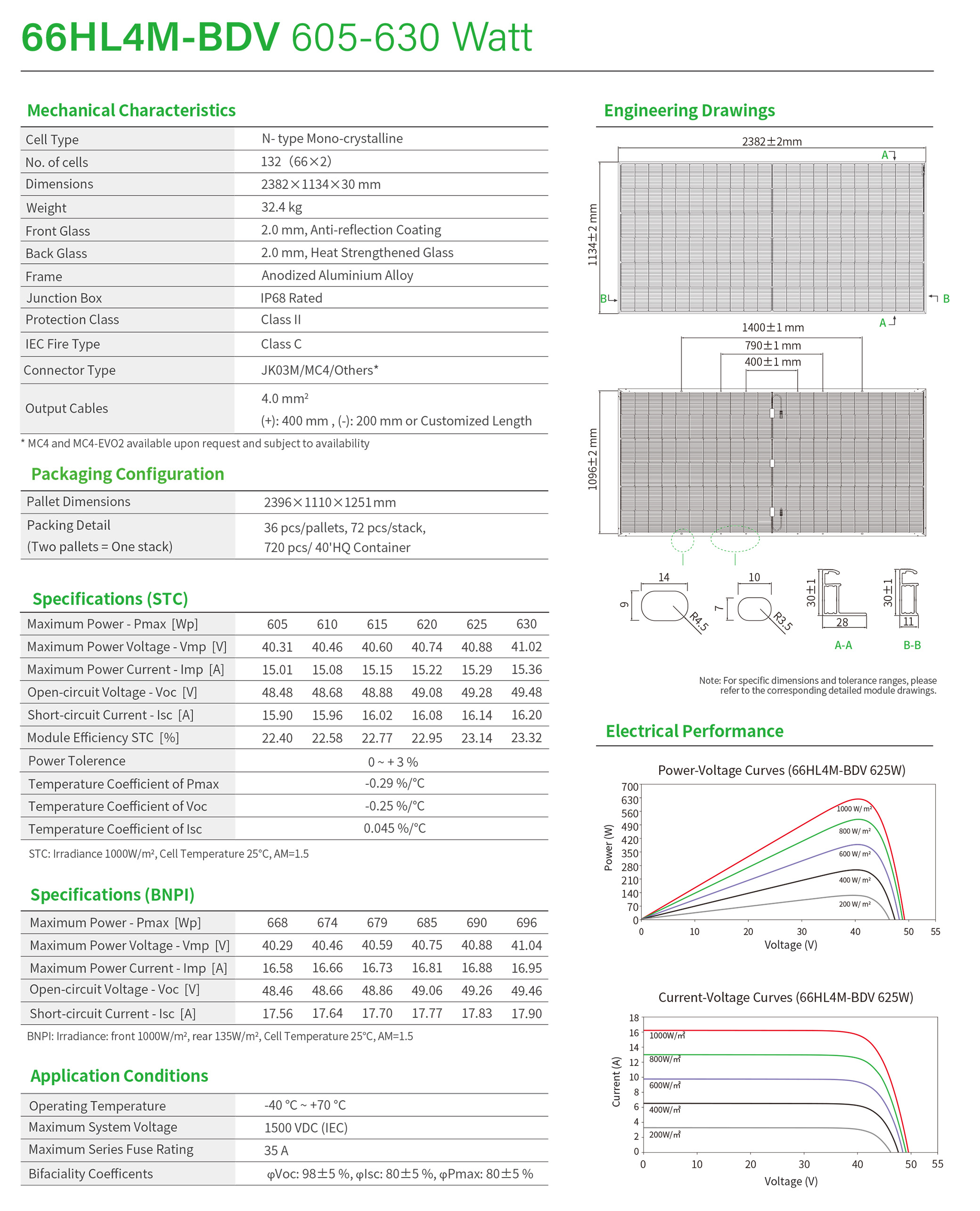

| 66HL4M-BDV 605-630 Watt | |||||||
| Mechanical Characteristics | |||||||
| Cell Type | N-type Mono-crystalline | ||||||
| No.of cells | 132(66×2) | ||||||
| Dimensions | 2382×1134×30 mm | ||||||
| Weight | 32.4kg | ||||||
| Front Glass | 2.0mm,Anti-reflection Coating | ||||||
| Back Glass | 2.0mm,Heat Strengthened Glass | ||||||
| Frame | Anodized Aluminium Alloy | ||||||
| Junction Box | IP68 Rated | ||||||
| Protection Class | Class Il | ||||||
| IEC Fire Type | Class C | ||||||
| Connector Type | JK03M/MC4/Others* | ||||||
| Output Cables | 4.0 mm² | ||||||
| (+):400mm,():200 mm or Customized Length | |||||||
| *MC4and MC4-EVO2 available upon request and subject to availability | |||||||
|
Packaging Configuration |
|||||||
| Pallet Dimensions | 2396×1110×1251mm | ||||||
| Packing Detail (Two pallets=One stack) |
36 pcs/pallets,72 pcs/stack, 720 pcs/40'HQ Container |
||||||
| Specifications(STC) | |||||||
| Maximum Power-Pmax [Wp] | 605 | 610 | 615 | 620 | 625 | 630 | |
| Maximum Power Voltage-Vmp [V | 40.31 | 40.46 | 40.60 | 40.74 | 40.88 | 41.02 | |
| Maximum Power Current-Imp [A] | 15.01 | 15.08 | 15.15 | 15.22 | 15.29 | 15.36 | |
| Open-circuit Voltage-Voc [V] | 48.48 | 48.68 | 48.88 | 49.08 | 49.28 | 49.48 | |
| Short-circuit Current-Isc [A] | 15.90 | 15.96 | 16.02 | 16.08 | 16.14 | 16.20 | |
| Module Efficiency STC [%] | 22.40 | 22.58 | 22.77 | 22.95 | 23.14 | 23.32 | |
| Power Tolerence | 0~+3% | ||||||
| Temperature Coefficient of Pmax | -0.29%/℃ | ||||||
| Temperature Coefficient of Voc | -0.25%/℃ | ||||||
| Temperature Coefficient of Isc | 0.045%/℃ | ||||||
| STC:Irradiance 1000W/m²,CellTemperature 25℃,AM=1.5 | |||||||
| Specifications(BNPI) | |||||||
| Maximum Power-Pmax [Wp] | 668 | 674 | 679 | 685 | 690 | 696 | |
| Maximum Power Voltage-Vmp [V] | 40.29 | 40.46 | 40.59 | 40.75 | 40.88 | 41.04 | |
| Maximum Power Current-Imp [A] | 16.58 | 16.66 | 16.73 | 16.81 | 16.88 | 16.95 | |
| Open-circuit Voltage-Voc [V] | 48.46 | 48.66 | 48.86 | 49.06 | 49.26 | 49.46 | |
| Short-circuit Current-Isc [A] | 17.56 | 17.64 | 17.70 | 17.77 | 17.83 | 17.90 | |
| BNPl:Irradiance:front 1000W/m²,rear 135W/m²,Cell Temperature 25℃,AM=1.5 | |||||||
| Application Conditions | |||||||
| Operating Temperature | -40℃~+70℃ | ||||||
| Maximum System Voltage | 1500 VDC(IEC) | ||||||
| Maximum Series Fuse Rating | 35A | ||||||
| Bifaciality Coefficents | φVoc:98±5%,φlsc:80±5%,φPmax:80±5% | ||||||
