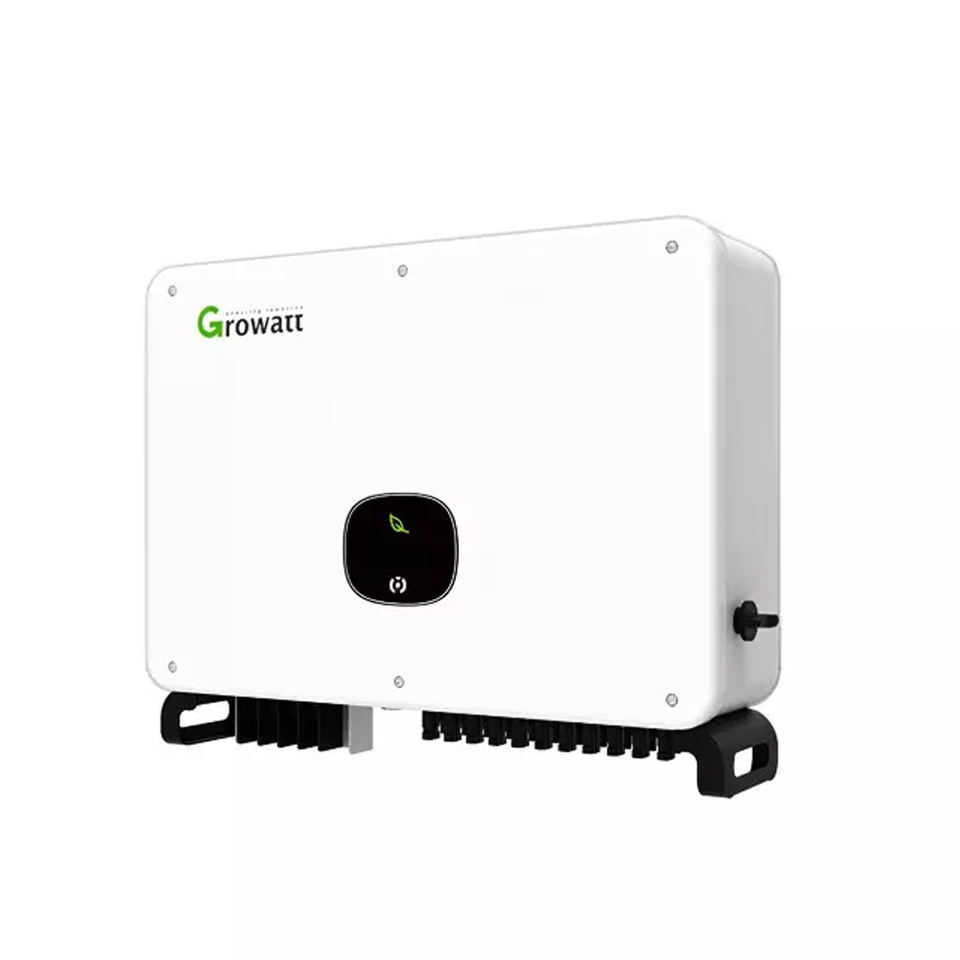

GROWATT Commercial & Industrial PV Inverter MAX 100-150KTL3-X2 LV/MV
Remotely shutdown function
● 8 MPPTs fusefree design
● Max. string current up to 22.5A
● Smart I/V scan and diagnosis
● Intelligent string monitoring
● AC&DC type II SPD
● IP66 protection
Primary Specification
|
Datasheet Input data (DC) |
MAX124KTL3-X2MV |
MAX125KTL3-X2MV |
MAX136KTL3-X2MV |
MAX150KTL3-X2MV |
|
Max. recommended PV power (for module STC) |
186000W |
187500W |
204000W |
204000W |
|
Max. DC voltage |
1100V |
|||
|
Start voltage |
195V |
|||
|
Nominal voltage |
720V |
|||
|
MPP voltage range |
180V- 1000V |
|||
|
No. of MPP trackers |
8 |
|||
|
No. of PV strings per MPP tracker |
2 |
|||
|
Max. input current per MPP tracker |
45A |
|||
|
Max. short-circuit current |
56.5A |
|||
|
Output data (AC) |
||||
|
AC nominal power |
124000W |
125000W |
136000W |
1500000W |
|
Max. AC apparent power |
136400VA |
137500VA |
150000VA |
165000VA |
|
Nominal AC voltage (range*) |
277V/480V 422-528VAC |
|||
|
AC grid frequency (range*) |
50/60 Hz (45~55Hz/59.5-60.5 Hz) |
|||
|
Max. output current |
164. 1A |
165.4A |
179.9A |
198.5A |
|
Adjustable power factor |
0.8leading ...0.8lagging |
|||
|
THDi |
<3% |
|||
|
AC grid connection type Efficiency |
3W/PE |
|||
|
Max.efficiency |
99.00% |
|||
|
European efficiency |
98.50% |
|||
|
MPPT efficiency |
99.90% |
|||
|
Protection devices |
||||
|
DC reverse polarity protection |
Yes |
|||
|
DC switch |
Yes |
|||
|
AC/DC surge protection |
Type II / Type II |
|||
|
Insulation resistance monitoring |
Yes |
|||
|
AC short-circuit protection |
Yes |
|||
|
Ground fault monitoring |
Yes |
|||
|
String detection |
Yes |
|||
|
Anti PID function |
Optional |
|||
|
Arc fault detection (AFCI) |
Optional |
|||
|
General data |
||||
|
Dimensions (W / H / D) |
970/640/345mm |
|||
|
Weight |
84kg |
|||
|
Operating temperature range |
–30°C ... +60°C |
|||
|
Nighttime power consumption |
< 1W |
|||
|
Topology |
Transformerless |
|||
|
Cooling |
Smart Cooling |
|||
|
Protection degree |
IP66 |
|||
|
Relative humidity |
0~100% |
|||
|
Altitude |
4000m |
|||
|
DC connection |
H4/MC4(Optional) |
|||
|
AC connection |
Cable gland+OT terminal |
|||
|
Display |
LED/WIFI+APP |
|||
|
Interfaces: RS485 / USB /PLC |
Yes/Yes/Optional |
|||
|
Warranty:5/10 years |
Yes/Optional |
|||
|
CE, IEC62116, IEC61727, UL1741, IEEE1547 |
||||
* The AC voltage range and frequency range may vary depending on specific country grid standard.
All specifications are subject to change without notice.
